"Ding"... Next Floor: Summit!
The Elevator Split is designed for people who value being uber efficient in the mountains! Built on the Escalator's legacy – its ultra-light, with a new outline that features a split specific sidecut increasing grip on icy skintracks, and a new snow repellant topsheet for less resistance on the climb. The unique torsional flex, and hybrid carbon construction deliver precise, controlled turns at any speed or slope angle. The Elevator is the pinnacle of uphill performance, without compromising any downhill capabilities!
- Delivered in 2-5 working days
- Supports 1% for the planet
- 2 year warranty
Personality
The Details

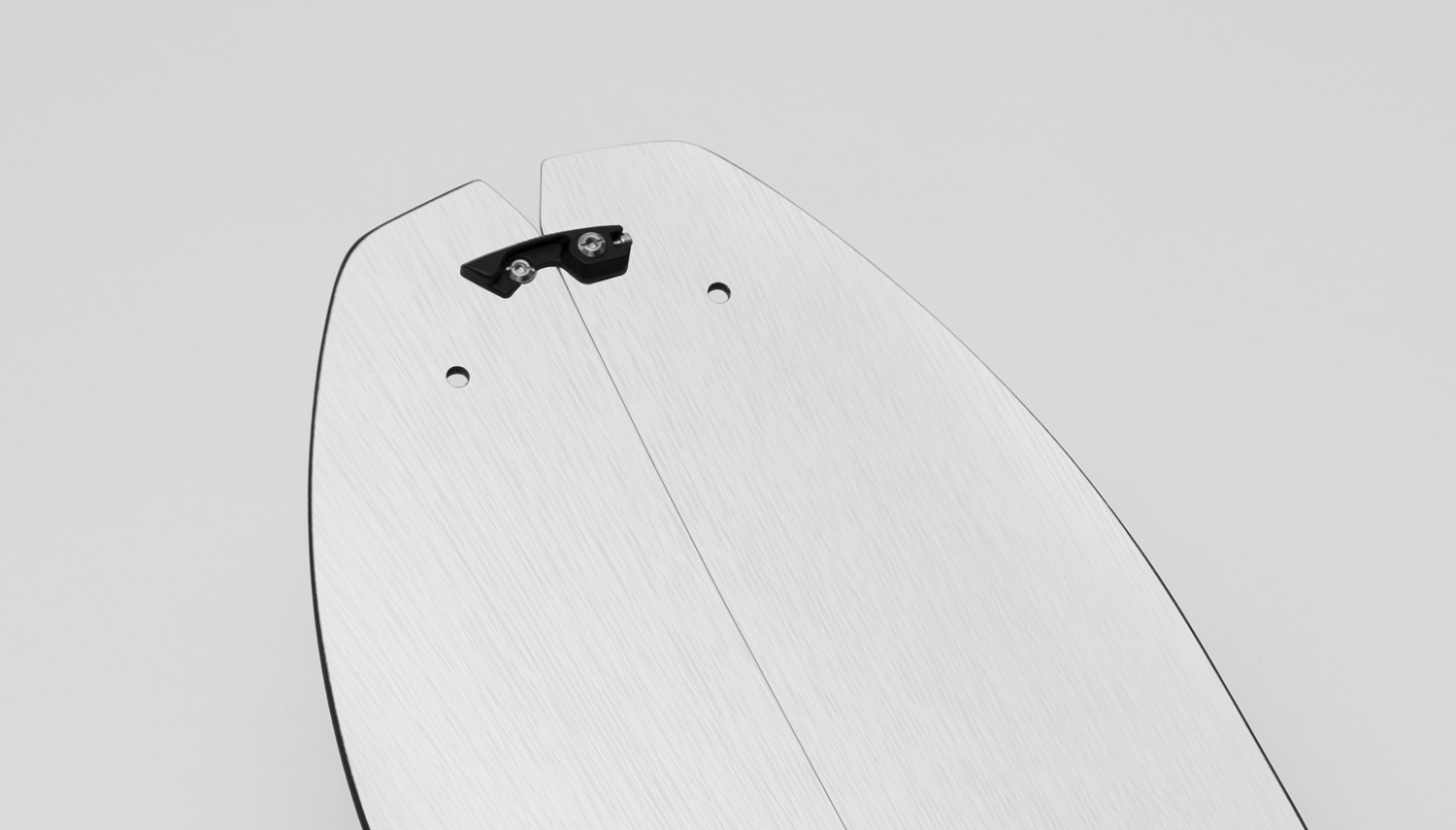

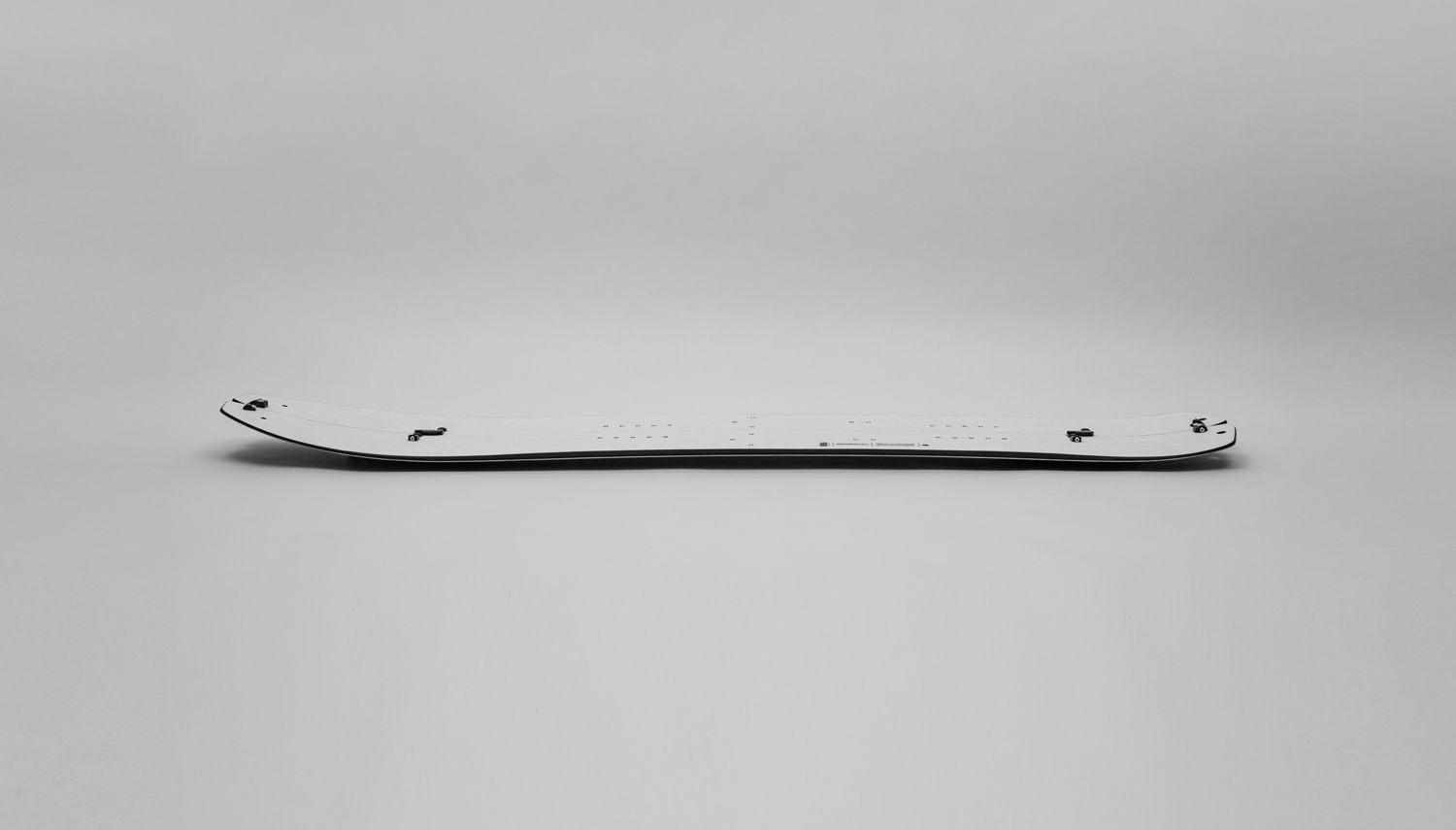

The Elevator Split features our FLOAT CAMBER, which curves into a rocker shape in the nose, giving you the lift you need in deep powder and stability under-foot on the uphill. To further enhance the performance and durability of this ultralight shape we upgraded the Elevator with a improved snow-repellent brushed topsheet. The new nose holes secure our Z-Hook skin mounting system and the nose notch prevents hang ups in the skin track. For an easy and quick setup we suggest using our pre-cut custom skins!
| Length (cm) | 157 | 162 |
| Effective Edge (mm) *A* | 1180 | 1230 |
| Running Length (mm) | 1010 | 1060 |
| Nose Width (mm) *B* | 299 | 303 |
| Waist Width (mm) *C* | 258 | 260 |
| Tail Width (mm) *D* | 279 | 283 |
| Avg. Sidecut Radius (m) | 9.2 | 9.4 |
| Setback (mm) | 35 | 35 |
| Taper (mm) | 20 | 20 |
| Recommended Stance (cm) | 52 | 52 |
| Adjust. Stance Range (cm) | 47-57 | 47-57 |
| Board Weight (kg) | 2.5 | 2.6 |
| Switch Riding | No Problem | No Problem |
Ultralight Brushed Topsheet, Carbon Multiaxial Glass, Paulownia/Poplar Light Core, Perlatech HS Sintered Base make for a combination of materials that balance the perfect turn, with ultimate uphill performance!
This chart shows the range in what each size can handle. It is never our intention to categorize riders and their preferences. Our philosophy of snowboarding is to try new shapes, lengths, widths, and to keep an open mind for alternative riding experiences; however, we do have some limits to consider so that your board will work as it was designed to.
Your weight plays a major role in how the board will flex, and your shoe size will affect toe and heel drag when turning. The below size chart is for reference only, as our recommendations may vary depending on your stance and riding ability.
ELEVATOR SPLIT
| Size (cm) | Max Boot Size (EU) | Max Boot Sole Length (cm) | Rider Weight Range (kg) | Max Rider Height (cm) |
| 157 | 44 | 30.7 cm | 55 - 90 kg | 188 cm |
| 162 | 44 | 30.7 cm | 65 - 95 kg | 195 cm |
RIDER REFERENCES
Nicholas Wolken – Elevator Split 162
Height & Weight: 177cm, 66kg
Boot size & Stance: EU 42 / US 8.5 regular, changing positive angles and stances
Bindings: Phantom
